(Thunderbolt3) Gamma Carry
페이지 정보
작성자에스비유코리아 댓글 0건 조회 130회 작성일 24-11-27 11:24
| 모델명 | Gamma Carry |
| 타입 | Tower |
| 베이 | 8-Bay |
| 인터페이스 | Thunderbolt3 x 2 |
| CPU | LSI 3108 |
| RAM | 2GB DDR3 |
| 패키지 | Thunderbolt3 2M Cable x 1 |
| 옵션 | SSD reader Tray |
| 특징 | 펠리컨 케이스 1510 호환 |
본문

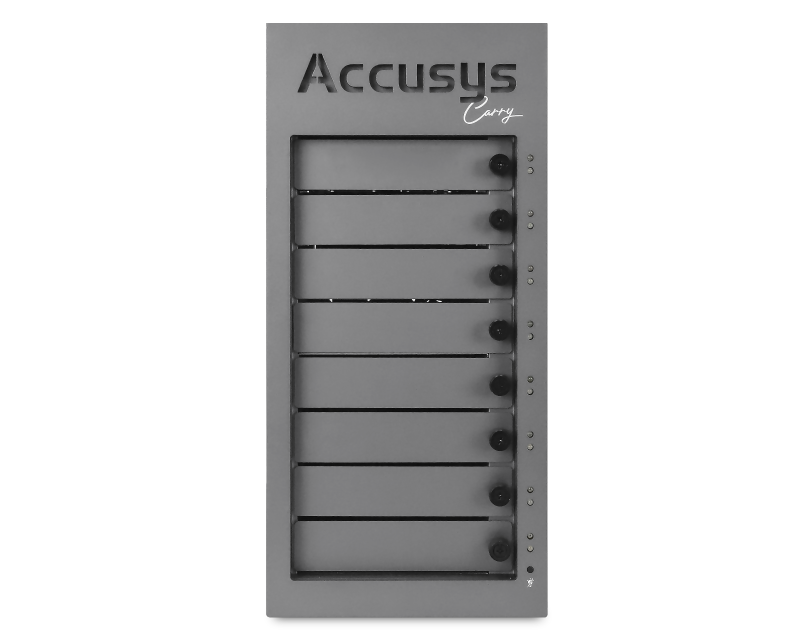

Accusys 8-Bay Gamma Carry
아래 스펙시트를 참고해주세요.
| 번호 | 정보 | 내용 |
|---|---|---|
| 1 | System Type | 8-Bay Tower RAID System |
| 2 | Interface | Thunderbolt3 x2 |
| 3 | Data Transfer Rate | Thunderbolt 3 : 40Gb/s |
| 4 | Disk Interface | SAS(12Gb/s)/SATA(6Gb/s) 3.5"/2.5" HDD/SSD |
| 5 | Disk Type | 3.5" / 2.5" / SSD |
| 6 | RAID Level | 0, 1, 5, 6, 0+1(10), JBOD |
| 7 | Cache Memory | 2GB DDRIIII 1866 with ECC-protected |
| 8 | Daisy chain | V |
| 9 | LED on/off Button | V |
| 10 | SSD Reader | V |
| 11 | 60W Power Supply | V |
| 12 | HDD Positionlng Pin | V |
| 13 | Mechanical shock test | 250G/2ms |
| 14 | Operating Temperature | 0°C ~ 40°C |
| 15 | Storage Temperature | -20°C~ 70°C |
| 16 | Operating Humidity | -5% ~ 85%, Non-condensing |
| 17 | Storage Humidity | -5% ~ 95% |
| 18 | RAID Controller Functions | -Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation Online disk scrubbing with data refresh and parity Disk health monitorning by S.M.A.R.T Array Roaming and Drive Traveling Mirror Snapshot for fast backup and restore Disk Lag Proof Technology to guarantee disk timely response Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation |
| 19 | Management | -Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting Event notification by email (SMTP) LED indicator for RAID & disk drives status in front 400W (Single) / 110V~240V power supply Two 12cm x 12 cm Fan with Smart Fan Control feature |
| 20 | Dimensions | 240 x 150 x 318 mm |
| 21 | Weight | -6 kg / 13.2 lbs |
INTRODUCE
아큐시스의 썬더볼트3 8베이 스토리지입니다.
최대 1500MB/s 읽기/쓰기 속도를 얻을 수있으며, 단일디스크 22TB까지 지원하여, 최대 176TB 구축가능합니다.
